9913 in stock
Excel solid Cat5e ethernet cable U/UTP PVC CPR Euroclass Eca are manufactured and tested to ISO 11801, EN 50173 and ANSI/TIA‐568‐C Cat5e specifications, 305 m or 500 m. Each cable consists of 8 colour coded solid copper polyethylene insulated conductors twisted together to form four pairs.
The whole cable is produced in a PVC sheath which is metre marked and labelled with part code and DoP information.
| Conductor surface | Bare |
| AWG size | 24 |
| Conductor category | Class 1 = solid |
| Total number of cores | 8 |
| Stranding element | Pairs |
| Specification core insulation | Polyethylene (PE) |
| Core identification | Colour |
| Overall screening | None |
| Conductor screening | None |
| Outer sheath material | Polyvinyl chloride (PVC) |
| Outer sheath colour | Grey |
| Flame retardant according to IEC 60332-1-2 | yes |
| Reaction-to-fire class according to EN 13501-6 | Eca |
| Outer diameter approx. | 5.2 mm |
| Operating Temperature Range | -10…75 °C |
| Category | 5E |
| NVP value | 70 % |
Don’t want to buy a whole box! We also have part boxes available, please call for details

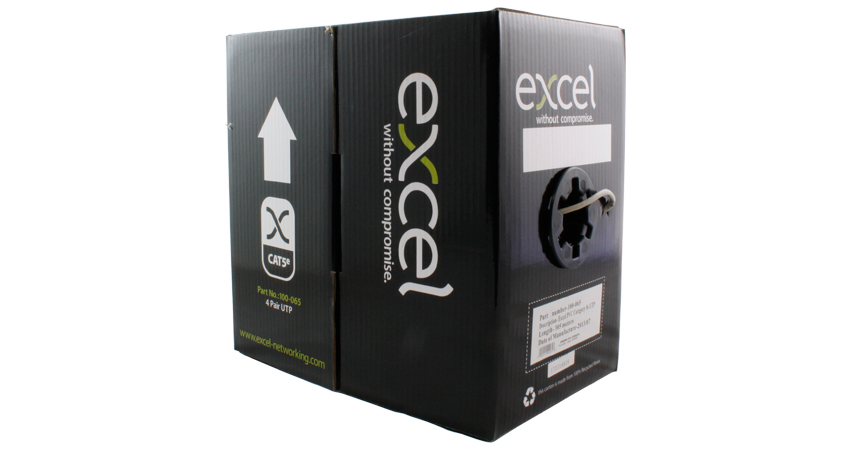

PRICE IS PER 305m BOX of CABLE!
